Precision ceramic piston pump valve series
Home > Product center > Precision ceramic piston pump valve series
Product center > Precision ceramic piston pump valve series

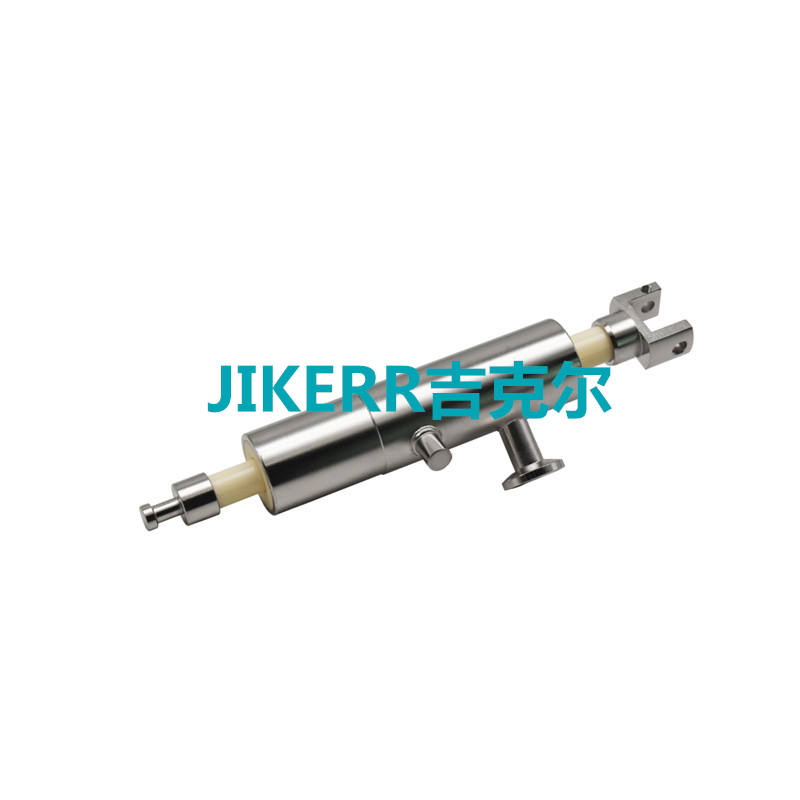

Ceramic filling valve custom series3
Performance Features:
l According to customer requirements, drawings and samples can be made.
l Anti-chemical reaction widely used in transportation of most chemical media.
l The plunger gap is small, it can run continuously without liquid, the filling precision is high, and it can be cleaned and sterilized online.
l Can completely replace imported ceramics.
Telephone：0769-83328418
Message feedbackPrevious：Ceramic filling valve custom series2
Detailed introduction
Wide application: suitable for precision filling of corrosive liquids such as oral liquid, biopharmaceuticals, chemical reagents, etc.
Performance Features:
l According to customer requirements, drawings and samples can be made.
l Anti-chemical reaction widely used in transportation of most chemical media.
l The plunger gap is small, it can run continuously without liquid, the filling precision is high, and it can be cleaned and sterilized online.
l Can completely replace imported ceramics.
Technical Parameters
Specification & Model | JKR-GZB JKR-GZB-Plunger Diameter |
Plunger material | Alumina / zirconia / silicon nitride / sapphire (optional) |
Plunger sleeve material | SUS316L Stainless steel SUS316L |
Maximum adaptation temperature | Max1000℃ |
fracture toughness | 8-10 |
Plunger fit clearance | ≤0.002mm |
single range | 0.5-20ml |
Stroke accuracy | ±0.25% |
External dimensions:
Suitable for precise filling of corrosive liquid such as oral liquids, bio pharmaceuticals, chemical reagents, etc.
