Diagnostic reagent drop package series
Home > Product center > Diagnostic reagent drop package series
Product center > Diagnostic reagent drop package series

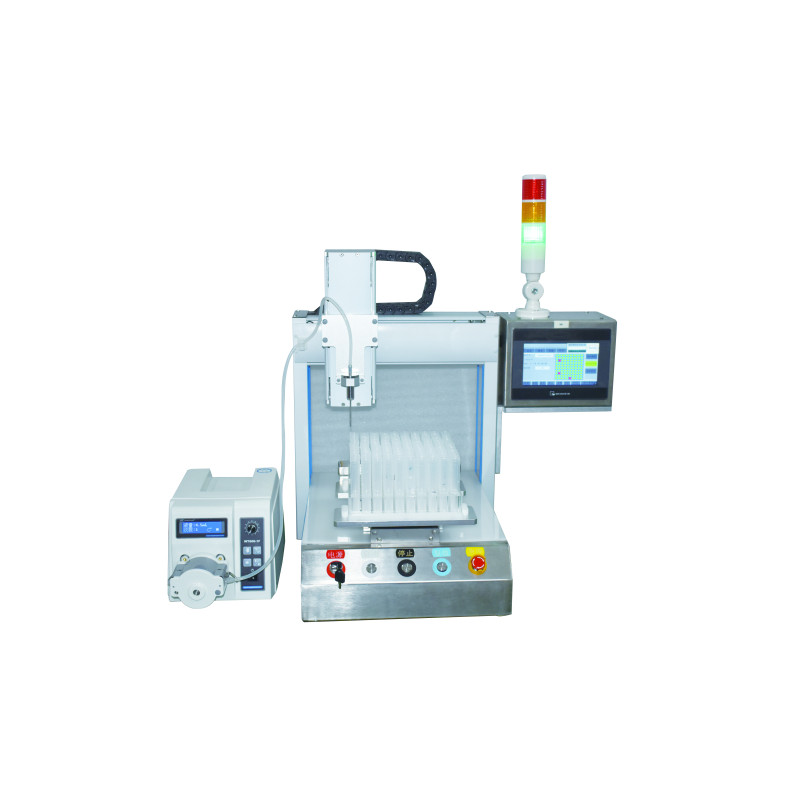

Diagnostic reagent dispenser
l Various kinds of water agent liquid precision metering filling, addition and so on.
l X-Y shaft is driven by step motor, moving injection needle in turn metering filling.
l Has the XY axis area array translation operation function, suitable for different specifications of the disk.
l Equipped with high-precision metering pump, accurate and stable measurement accuracy, wide versatility of liquid.
l Metering pump anti-chemical reactions are compatible with most fluids.
l Metering pump without dynamic seals, no easily damaged parts, zero maintenance and maintenance costs.
Telephone：0769-83328418
Message feedbackPrevious：no more
Next：no more
Detailed introduction
Widely used for: Precise quantity filling of liquids such as biological agents, pharmaceuticals, batteries, liquid agents, perfumes, etc.
Product performance：
l Various kinds of water agent liquid precision metering filling, addition and so on.
l X-Y shaft is driven by step motor, moving injection needle in turn metering filling.
l Has the XY axis area array translation operation function, suitable for different specifications of the disk.
l Equipped with high-precision metering pump, accurate and stable measurement accuracy, wide versatility of liquid.
l Metering pump anti-chemical reactions are compatible with most fluids.
l Metering pump without dynamic seals, no easily damaged parts, zero maintenance and maintenance costs.
Technical Parameters
Specification & Model | JKR-DZS200 | JKR-DZS400 |
X-Y itinerary | 200×200mm | 400×400mm |
Maximum load | 10kg | 15kg |
Moving speed | 0.1-500/250 | |
Lattice repetition accuracy | ±0.2 | |
Filling range | 0.01-30ml(According to different types of pumps) | |
Measurement accuracy | ±1‰(According to different types of pumps) | |
Adjustment mode | Digital screen touch screen smart adjustment | |
Pump touches liquid material | Ceramics, Teflon | |
Communication interface | RS23 2(485 optional),I/O,CC TRIG,AUX OUT | |
Power supply | 220V/50HZA or 120V/60HZ (optional) | |
Work environment | Use temperature and humidity 5-40℃,below 85%RH | |
Live application video display
