Intelligent single head metering pump series
Home > Product center > Intelligent single head metering pump series
Product center > Intelligent single head metering pump series

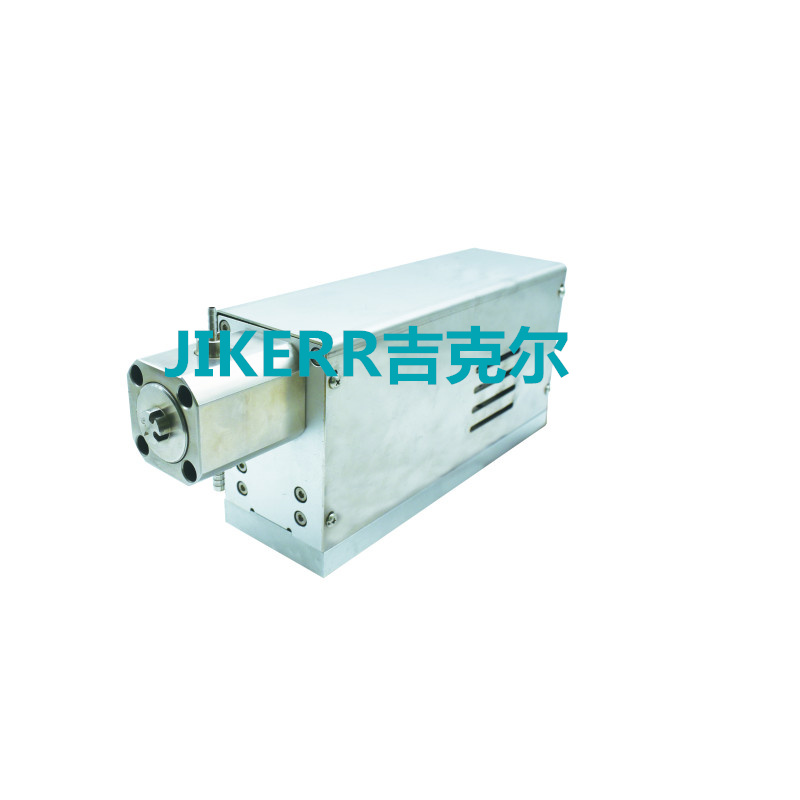

Single head intelligent metering pump rotary valve series
l Compact structure, small size, high precision, corrosion resistance and high temperature resistance.
l Easy to disassemble and install in only 5 minutes and can be cleaned online.
l Precision wire motor drive, high performance, long service life, high strength and repeatable operation.
l Digital touch screen mediates measurement capacity.
l No quick-wear parts, zero maintenance and repair costs.
l Anti-chemical reaction prevention is compatible with most fluids.
l Ceramic rotary valve cutting fluid commutation.
Telephone：0769-83328418
Message feedbackPrevious：Single head intelligent metering pump diaphragm valve series
Next：no more
Detailed introduction
Widely used for：Precise quantity filling of liquids such as biological agents, pharmaceuticals, batteries, CVs, heat pipes, liquid agents, perfumes, etc.
Product performance：
l Compact structure, small size, high precision, corrosion resistance and high temperature resistance.
l Easy to disassemble and install in only 5 minutes and can be cleaned online.
l Precision wire motor drive, high performance, long service life, high strength and repeatable operation.
l Digital touch screen mediates measurement capacity.
l No quick-wear parts, zero maintenance and repair costs.
l Anti-chemical reaction prevention is compatible with most fluids.
l Ceramic rotary valve cutting fluid commutation.
Technical Parameters
Specification & Model | JKR-ZNX1-M500µl | JKR-ZNX1-M1500µl | JKR-ZNX1-M3500µl | JKR-ZNX1-M6500µl | JKR-ZNX1-M10ml |
Plunger material | Alumina / zirconia / silicon nitride / sapphire (optional) | ||||
Valve direction switching | Rotary switching of ceramic valve | ||||
Driving mode | Precision screw/stepper motor | ||||
Stroke speed | 1-60r / min (preparation and selection) | ||||
Adjustment mode | Digital screen touch screen smart adjustment | ||||
Single stroke range | 3-500µL | 5-1500µL | 20-3500µL | 50-6500µL | 0.1-10ml |
Stroke accuracy | ±0.3‰ | ±0.4‰ | ±5‰ | ±5‰ | ±5‰ |
Liquid inlet pipe | Φ2.5×4mm | Φ4×6mm | Φ6×8mm | Φ6×8mm | Φ6×8mm |
Outlet pipe | Φ1.0×1.6mm | Φ2.5×4mm | Φ4×6mm | Φ4×6mm | Φ4×6mm |
Pipe material | PE/PTFE (optional) | ||||
Communication interface | RS23 2(485 optional), I/O, CC TRIG, AUX OUT | ||||
Power supply | 220V/50HZA or 120V/60HZ (optional) | ||||
Work environment | Use temperature and humidity 5-40℃, below 85%RH | ||||
