Stainless steel pressure container series
Home > Product center > Stainless steel pressure container series
Product center > Stainless steel pressure container series

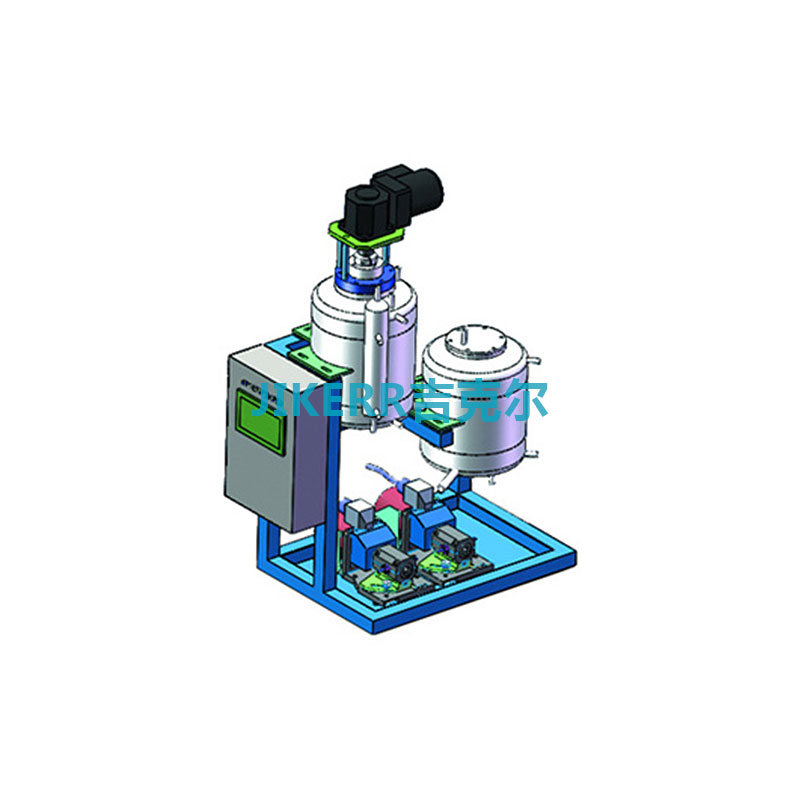

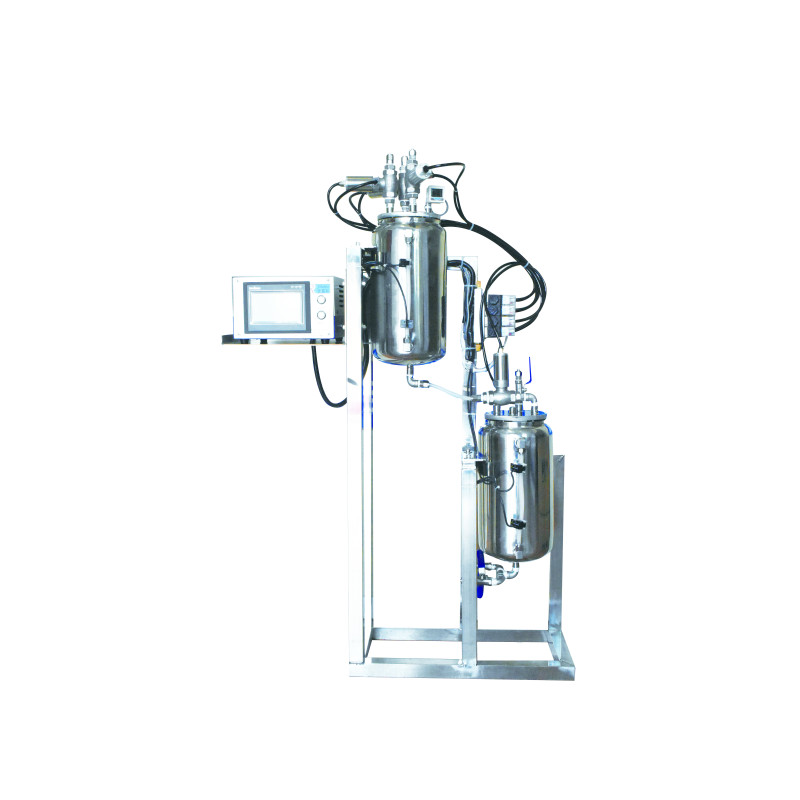

Stepped AB vacuum debubbling cache tank
Product performance：
l AB stainless steel tank automatic filling function.
l Functions such as automatic mixing, pumping, vacuum breaking, defoaming.
l With liquid level display, automatic sensing of upper and lower limits, automatic safety protection of excessive liquid levels.
l Completely made with stainless steel SUS304 material.
l The mixing slurry is driven by a motor with adjustable speed.
l A programmable controller is used to automatically control the liquid level and the valves.
Telephone：0769-83328418
Message feedbackPrevious：JKR-SUS30403L stainless steel electrolyte cache tank
Detailed introduction
Application fields： suitable for turnover, transition, buffering and standing in electrolytes, water, medicines, acids, alkalis, glues, reagents and other industries.
Product performance：
l AB stainless steel tank automatic filling function.
l Functions such as automatic mixing, pumping, vacuum breaking, defoaming.
l With liquid level display, automatic sensing of upper and lower limits, automatic safety protection of excessive liquid levels.
l Completely made with stainless steel SUS304 material.
l The mixing slurry is driven by a motor with adjustable speed.
l A programmable controller is used to automatically control the liquid level and the valves.
Technical Parameters
Specification & Model | JKR-2HCG5L | JKR-2HCG10L | JKR- 2HCG15L | JKR- 2HCG20L | JKR- 2HCG50L |
Material | SUS304/316/316L | ||||
Wall thickness | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 3.0mm |
Volume of single tank | 5L | 10L | 15L | 20L | 50L |
Vacuum meter | SMC SMC-Digital display | ||||
valve | Electric / pneumatic（optional） | ||||
Mixing motor | Adjustable speed motor | ||||
Liquid inlet pipe | 8×10mm（Can be specified） | ||||
Connecting pump pipe | 6×8mm（Can be specified） | ||||
Vacuum pipe | 8×10mm（Can be specified） | ||||
Note:The above are only representative products, models not listed include.JKR- 2HCG100L, JKR- 2HCG200L.
